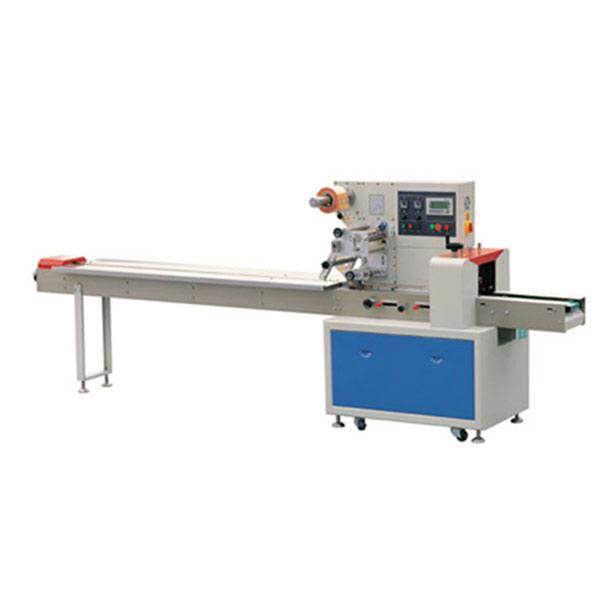

Horizontal packing machine
The machine suit Various kinds of objects with regular shape like biscuits, instant noodles, towels, bread, cakes, pies, candy, ice-cream, medicine, commodity, hardware, detergent, industrial components etc.
Feature:
1. Dual frequency conversion control, bag length can be set and cut on one step, saving time and film.
2. Interface features easy and quick setting and operation.
3. Self failure diagnosis, clear failure display.
4. High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5. Temperature independent PID control, more suitable for packing different materials.
6. Positioned stop function, without sticking knife or wasting film.
7. Simple driving system, reliable working, convenient maintenance.
8. All control is realized through software, easy for function adjusting and technical upgrade.
UC-320B | UC-320D | |
Bag length | 65-190 or 120-280mm | 90-220 or 150-330mm |
Bag width | 50-160mm | |
Product height | Max 45mm | Max 60mm |
Film width | Max 320mm | |
Film roll diameter | Max 320mm | |
Packaging speed | 40-230bag/min | |
Packaging material | OPP,CPP,PET,AL,Other Laminated films | |
1 phase | 220V 50/60HZ 2.6KW | |
Machine size | (L)3770 x (W)720 x (H)1450 mm | |
Machine weight | 700 kg | |
Application:
The machine suit Various kinds of objects with regular shape like biscuits, instant noodles, towels, bread, cakes, pies, candy, ice-cream, medicine, commodity, hardware, detergent, industrial components etc.
Feature:
1. Dual frequency conversion control, bag length can be set and cut on one step, saving time and film.
2. Interface features easy and quick setting and operation.
3. Self failure diagnosis, clear failure display.
4. High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5. Temperature independent PID control, more suitable for packing different materials.
6. Positioned stop function, without sticking knife or wasting film.
7. Simple driving system, reliable working, convenient maintenance.
8. All control is realized through software, easy for function adjusting and technical upgrade.
UC-320B | UC-320D | |
Bag length | 65-190 or 120-280mm | 90-220 or 150-330mm |
Bag width | 50-160mm | |
Product height | Max 45mm | Max 60mm |
Film width | Max 320mm | |
Film roll diameter | Max 320mm | |
Packaging speed | 40-230bag/min | |
Packaging material | OPP,CPP,PET,AL,Other Laminated films | |
1 phase | 220V 50/60HZ 2.6KW | |
Machine size | (L)3770 x (W)720 x (H)1450 mm | |
Machine weight | 700 kg | |
