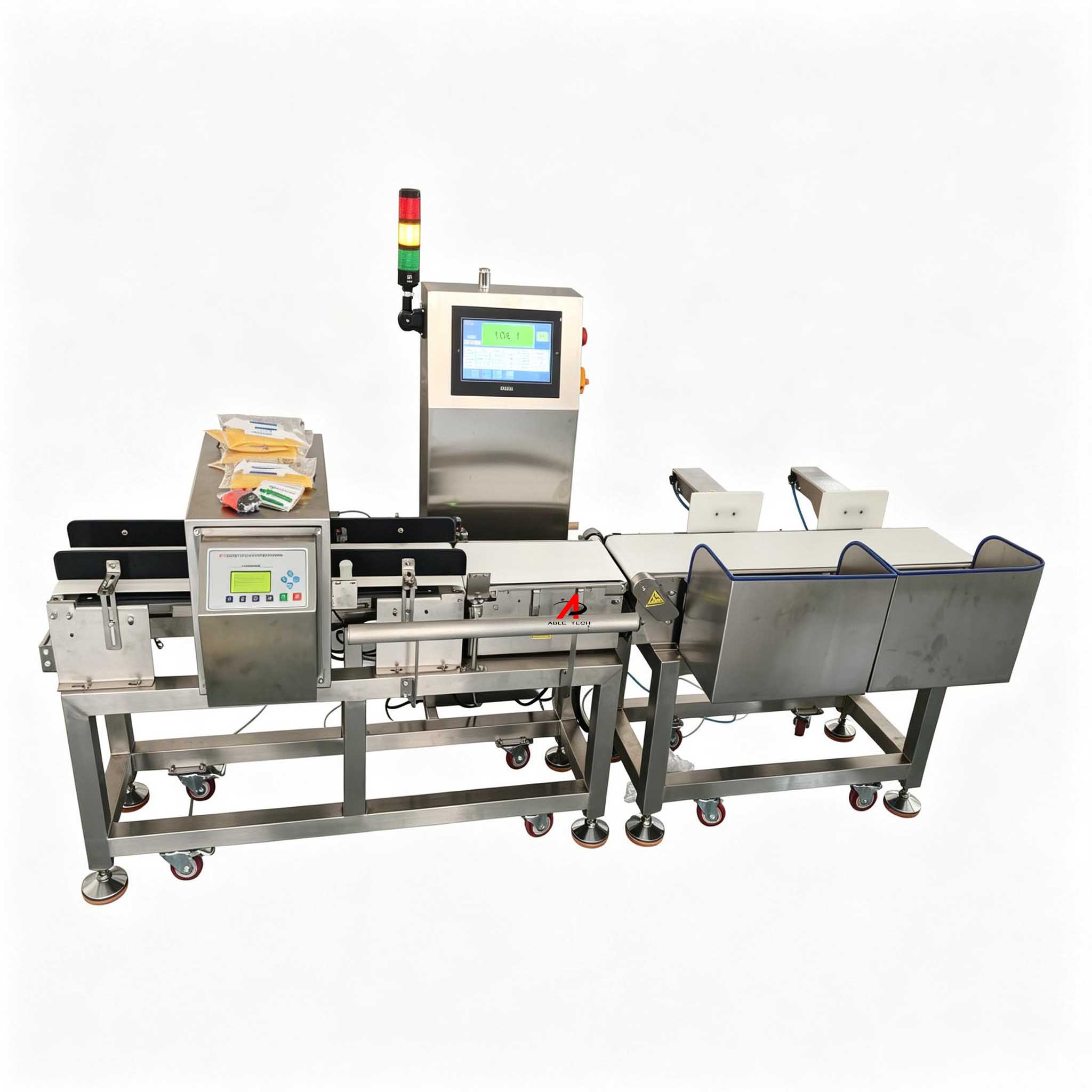

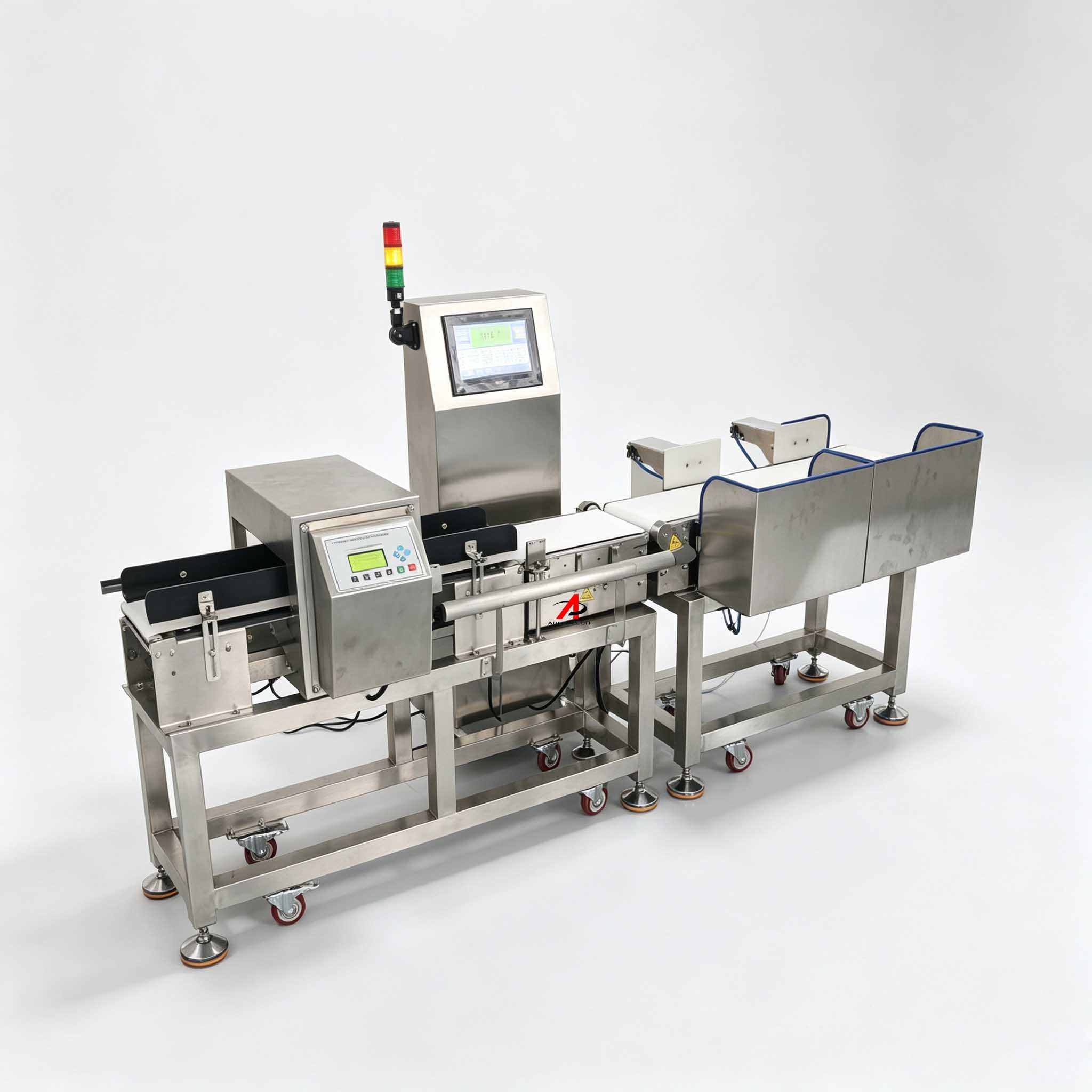

Automatic Checkweigher and Metal Detector Conveyor System for Food Packaging Weight Inspection
Automatic Checkweigher and Metal Detector Conveyor System for Weight Inspection and Product Rejecting
Product Overview
The ABLE XP Series Checkweigher and Metal Detection Conveyor System is an industrial online inspection solution designed for automatic weight checking, metal detection, and product rejection during high-speed production.
The system integrates an industrial touchscreen, high-speed PLC controller, self-developed weighing module, and intelligent control software to accurately detect product weight variations and identify metal contamination.
When products are detected with incorrect weight or unwanted metal particles, the automatic reject mechanism removes defective items from the production line, ensuring product quality and improving manufacturing efficiency.
It is widely used in food, pharmaceutical, chemical, and packaging industries where accurate inspection and reliable quality control are required.
Key Features
High-Precision Online Weight Inspection
The ABLE XP Series checkweigher continuously checks product weight during production and automatically identifies:
Overweight products
Underweight products
Missing items
Incorrect filling quantities
Integrated Metal Detection Function
The conveyor system can be equipped with a metal detection module to identify metal contaminants inside packaged products.

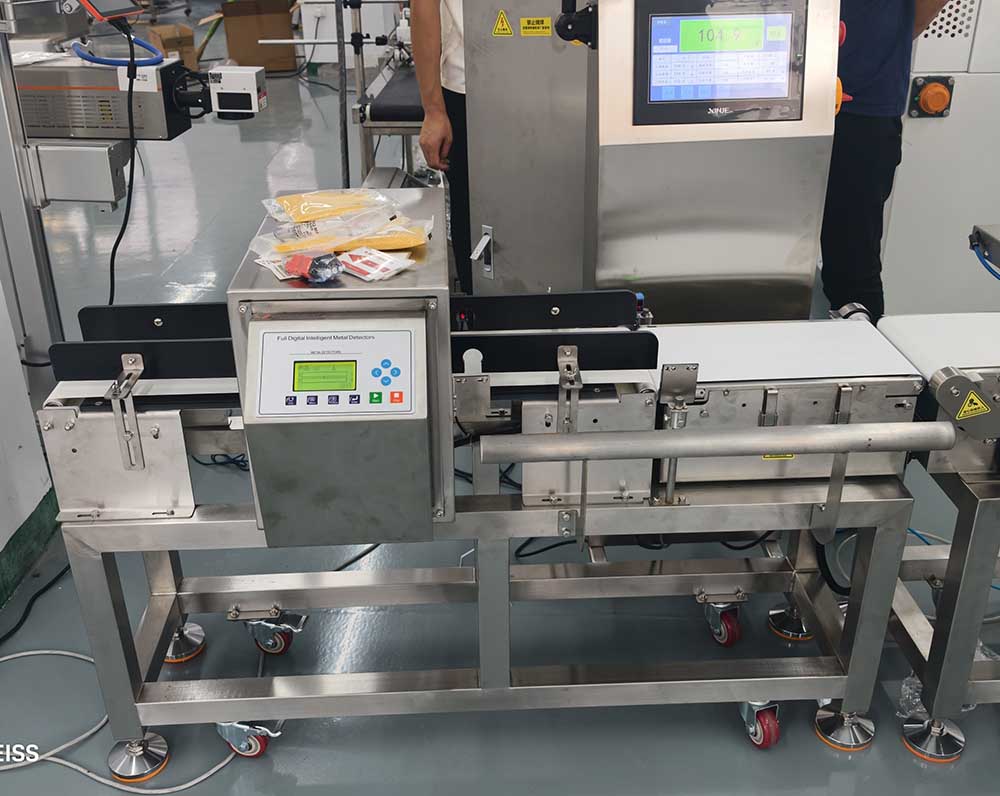

Detection Part

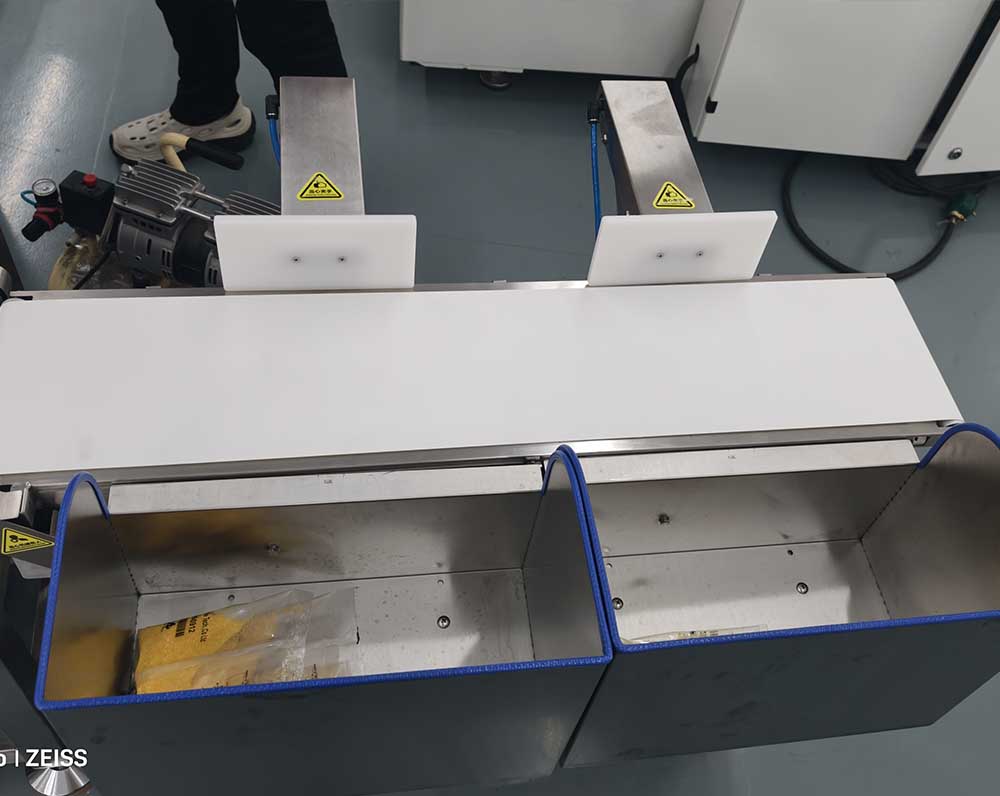

Eliminate Part

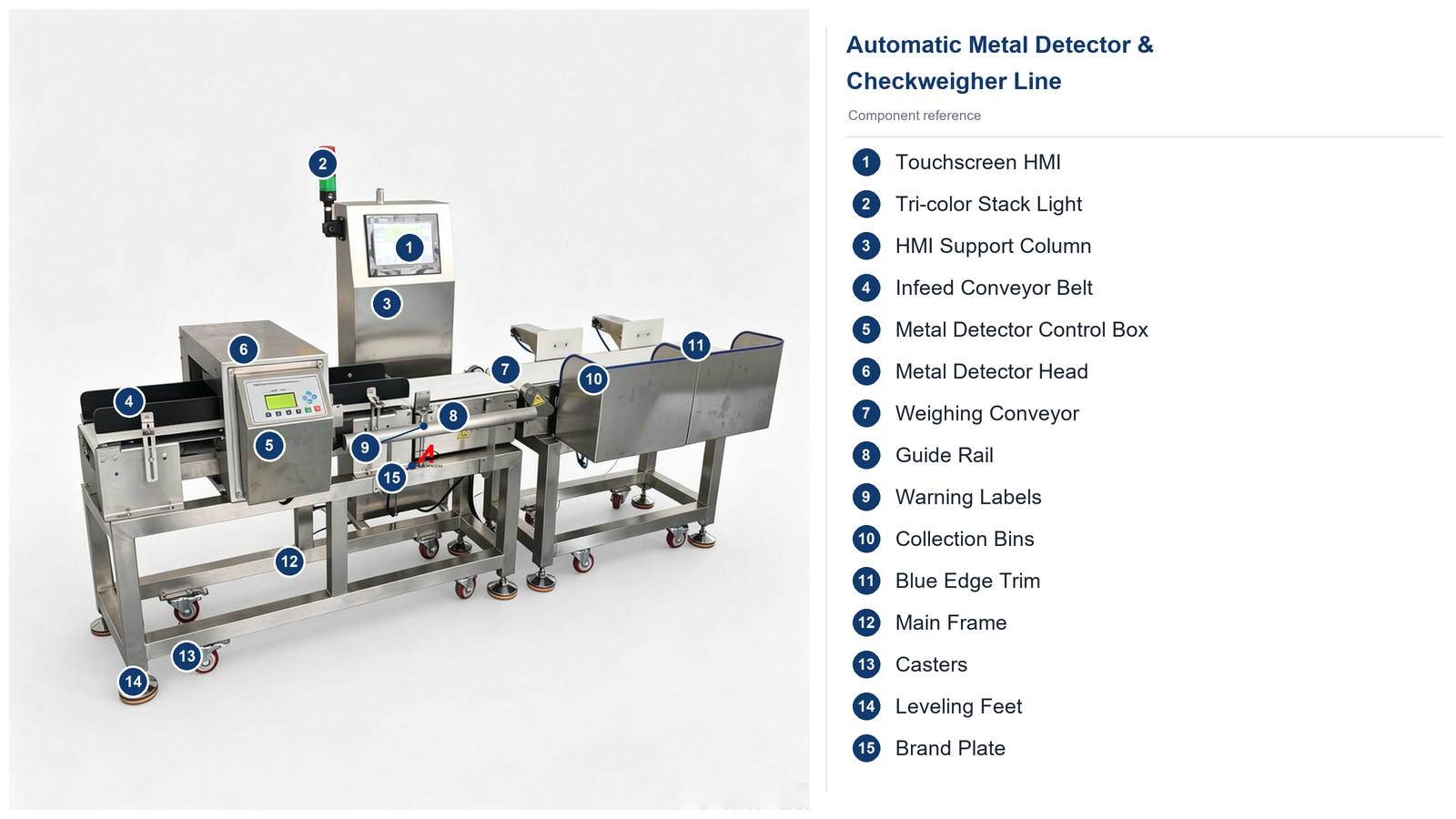

Intelligent Control System
The system uses:
Industrial touchscreen interface
High-speed PLC computing system
High-performance weighing module
User-friendly operation software
Operators can easily monitor production data, adjust parameters, and manage inspection settings.
| Technical Specifications | |
| Parameter | Specification |
| Product Name | Automatic Checkweigher and Metal Detector Conveyor System |
| Model | ABLE XP Series |
| Function | Weight checking, metal detection, automatic rejection |
| Control System | Industrial touchscreen + PLC controller |
| Weighing Technology | High-speed dynamic weighing module |
| Detection Type | Online non-contact inspection |
| Weight Accuracy | ±0.1g - ±5g (depending on product and configuration) |
| Conveyor Speed | Adjustable according to production requirements |
| Reject Method | push arm |
| Product Type | Bags, boxes, cartons, packaged products |
| Detection Items | Underweight, overweight, missing products, metal contamination |
| Conveyor Material | Stainless steel (304 optional) |
| Display Interface | Touchscreen HMI |
Working Principle
Products enter the conveyor inspection area.
The weighing module measures the product weight in real time.
The metal detector checks whether metal contamination exists.
The control system compares inspection results with preset parameters.
Defective products are automatically removed by the reject mechanism.
Qualified products continue to the next production process.
Why Choose AblePack XP Series Inspection Conveyor?
Professional packaging line inspection solution
Customized conveyor and reject systems available
Suitable for different package sizes and production speeds
Reliable industrial components
Support for global distributors and end users
