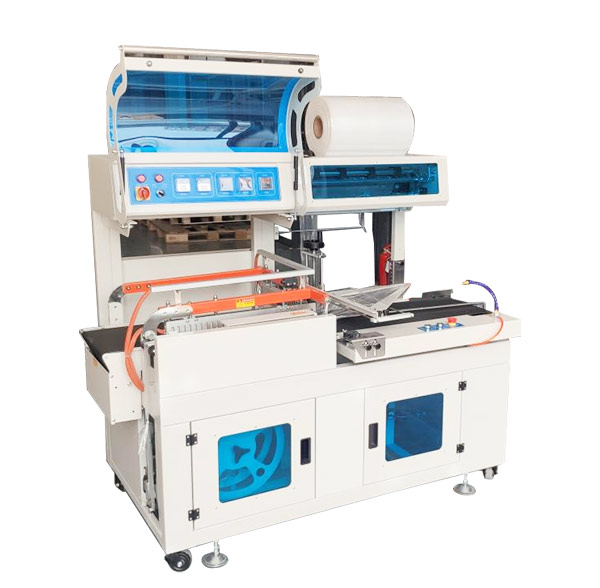

Full Auto L type Film Sealing Machine
AT-450 series sealing and cutting machine is a fully automatic unmanned L-shaped sealing and cutting machine, automatic shrink packaging machine is widely used in mass production and packaging flow operations. The regulated feed conveyor platform is suitable for extra-large batch shrink packaging in software, food, cosmetics, printing, pharmaceutical and flooring, ceramics, beverages, hardware and other industries.
Feature:
1. The sealing knife is made of American DuPont Teflon coated anti-stick and high-temperature resistant aluminum alloy knife, which will not crack, coking, smoke and zero pollution.
2. Automatic feeding, and the length can be adjusted automatically through the combination of electric eye and timer. Equipped with an induction motor to automatically wind up waste.
3. Equipped with input detection photoelectricity, one set for horizontal and vertical detection, which is convenient for switching selection. For thin and small packages, the sealing and packaging operation can be easily completed.
4. The temperature controller adopts digital display temperature controller with built-in PID function. The temperature of the sealing knife is extremely sensitive and accurate, and can be set at will. The sealing knife itself also has an automatic protection function, which effectively prevents miscutting the packaging.
5. When the size of the package is changed, the adjustment is very simple, and there is no need to change the mold and bag maker.
6. The sealing and cutting part of the machine is equipped with a plexiglass protective cover and has an automatic alarm function, which greatly improves the safety of the operator.
7. The whole set of machines truly realizes the unmanned operation connection with the production line.
Model | FQL450 |
Voltage | 220v/50-60hz |
Air pressure | 5-7kg/cm³ |
Power | 1.35kw |
Capacity | 15-30bags/min |
Max packing size(L+H)(H<150mm) | <500mm |
Max packing size(W+H)(H<150mm) | <400mm |
Cutter size | 550*450mm |
Shrink film | POF/PE |
Machine size | 1650*800*1450mm |
Weight | 300KGS |
Application:
AT-450 series sealing and cutting machine is a fully automatic unmanned L-shaped sealing and cutting machine, automatic shrink packaging machine is widely used in mass production and packaging flow operations. The regulated feed conveyor platform is suitable for extra-large batch shrink packaging in software, food, cosmetics, printing, pharmaceutical and flooring, ceramics, beverages, hardware and other industries.
Feature:
1. The sealing knife is made of American DuPont Teflon coated anti-stick and high-temperature resistant aluminum alloy knife, which will not crack, coking, smoke and zero pollution.
2. Automatic feeding, and the length can be adjusted automatically through the combination of electric eye and timer. Equipped with an induction motor to automatically wind up waste.
3. Equipped with input detection photoelectricity, one set for horizontal and vertical detection, which is convenient for switching selection. For thin and small packages, the sealing and packaging operation can be easily completed.
4. The temperature controller adopts digital display temperature controller with built-in PID function. The temperature of the sealing knife is extremely sensitive and accurate, and can be set at will. The sealing knife itself also has an automatic protection function, which effectively prevents miscutting the packaging.
5. When the size of the package is changed, the adjustment is very simple, and there is no need to change the mold and bag maker.
6. The sealing and cutting part of the machine is equipped with a plexiglass protective cover and has an automatic alarm function, which greatly improves the safety of the operator.
7. The whole set of machines truly realizes the unmanned operation connection with the production line.
Model | FQL450 |
Voltage | 220v/50-60hz |
Air pressure | 5-7kg/cm³ |
Power | 1.35kw |
Capacity | 15-30bags/min |
Max packing size(L+H)(H<150mm) | <500mm |
Max packing size(W+H)(H<150mm) | <400mm |
Cutter size | 550*450mm |
Shrink film | POF/PE |
Machine size | 1650*800*1450mm |
Weight | 300KGS |
Application:
