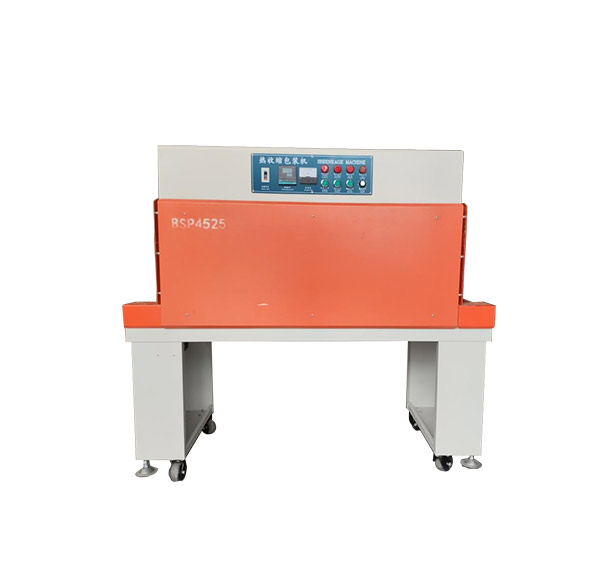

Shrink Wrapping Packing Machine

The BSE series PE film shrink tunnel is suitable for all kinds of shrink films. The machine adopts digital temperature controller, which makes operation easier.
Availability:

The BSE series PE film shrink tunnel is suitable for all kinds of shrink films. The machine adopts digital temperature controller, which makes operation easier. There are Heat Tunel on the top, bottom and sides of the shrinking room. The powerful fan inside the tunnel makes the air heating equally. The speed of the conveyer is adjustable. And you can choose roller or net conveyor as your request.

6

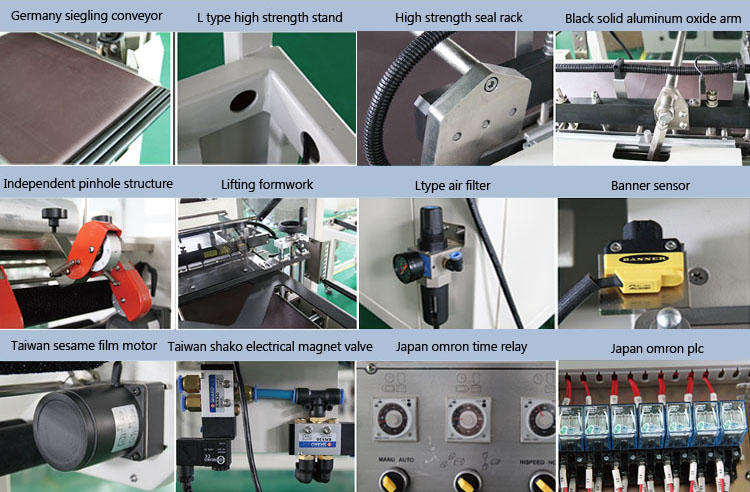

Feature:

1. Works with all kinds of shrink films, but specially tunnel for non-PVC,poly olefin films;

2. Temperature compensating solid state controllers;

3. Belt conveyor with variable speed and adjustable;

4. Top&bottom&side heat

5. Quick chang seal wire with tension assembly;

6. Magnetic Hold-down (L sealer) ;

7. High velocity turbo-tunnel;

8. Combination unit-system runs on one circuit;



Model

Voltage

Power

Load weight

Max packing size

size

Speed

BS4525A

220V/380V

6.5KW

10kg

450×250

1200×700×1000

0-10m/min

BS4535LA

380V

9.6KW

30kg

450x350

1600×700×1100

0-10m/min


Application:
