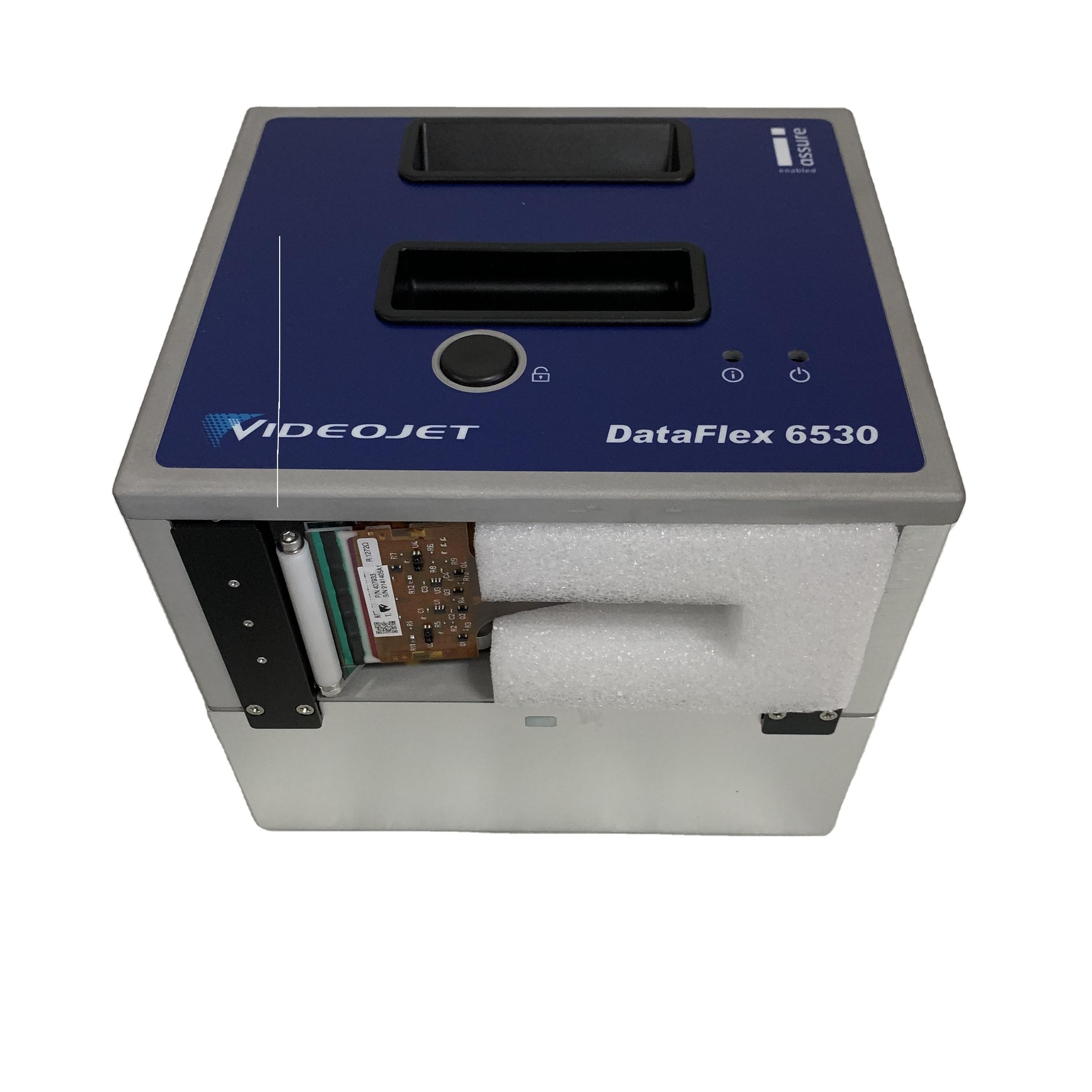

VJ 6530 dataflex Industrial packing line TTO date printer

The Videojet DataFlex® 6530 is a high-speedthermal transfer overprinter built to offer superiorperformance and consistent high-quality printing.The airless, patented all-electronic system andribbon drive can achieve print speeds up to1000mm/s and throughputs up to 700 ppm'

The 6530 offers multiple integration options witha modular design, and is available in two printheadwidths, 53mm with iAssure" and 107mm, to meetyour specifc application needs.

Printhead53mm or 107mm, 300dpi (12dot/mm)

Print area

53mm intermittent printing mode: 2.1" (53mm) wide x 3.0” (75mm) long53mm continuous printing mode: 2.1" (53mm) wide x 11.8”(300mm) long107mm intermittent printing mode: 4.3"(107mm) wide x 3.0"(75mm) long107mm continuous printing mode: 4.3"(107mm) wide x 11.8"(300mm) long

Minimum print speed'Intermittent mode:0.4 in./sec (10mm/sec)Continuous mode: 0.04 in./sec (1mm/sec)

Maximum print speed

53mm intermittent printing mode: 31.5 in/sec (800mm/sec)107mm intermittent printing mode: 23.6 lnsec (600mm/sec)Continuous mode: 39.4 in.'sec (1.000mm/sec)

Maximum throughput'53mm normal print mode: Up to 500 prints per minute53mm high throughput mode: Up to 700 prints per minute107mm normal print mode: Up to 450 prints per minute
