Videojet DataFlex 6530 & 6330 Thermal Transfer Printers

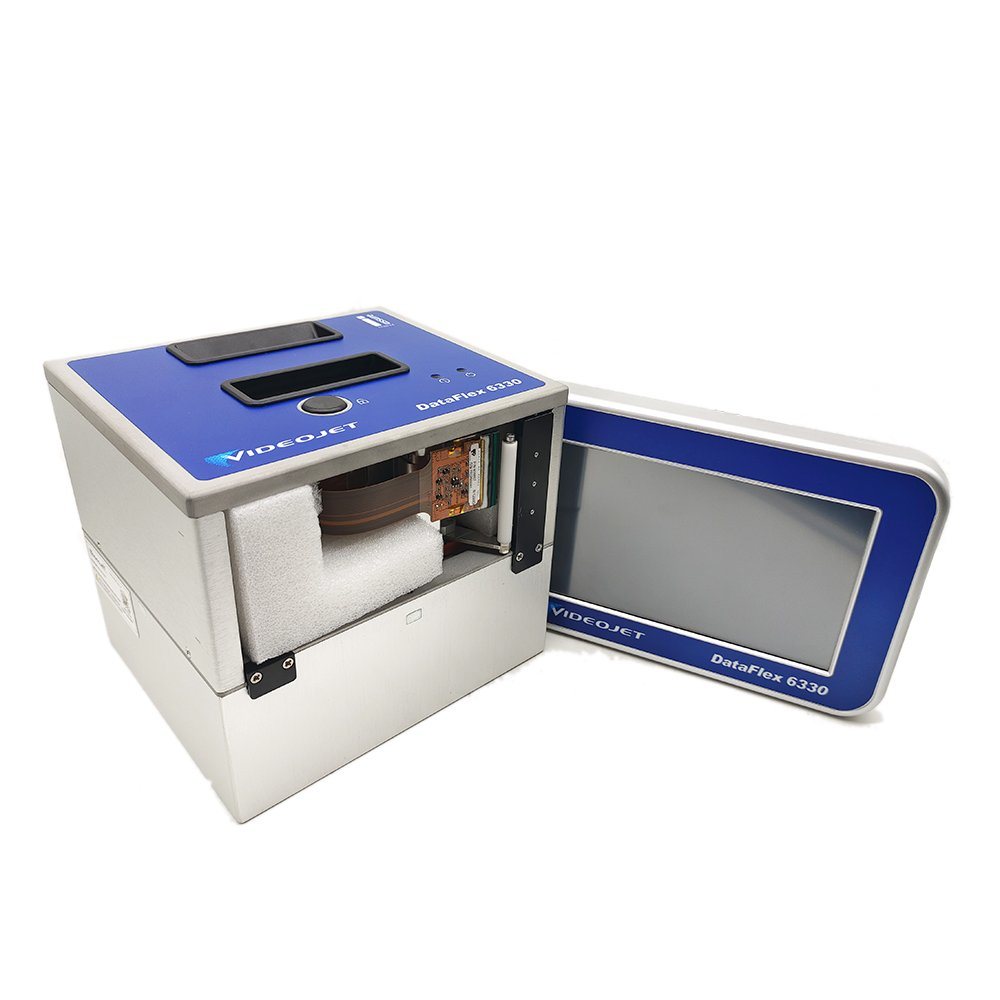

The Videojet DataFlex 6330 is an industrial thermal transfer overprinter (TTO) designed for printing high-quality variable information on flexible packaging materials. Available with 32 mm and 53 mm printhead options, it supports a wide range of packaging and product coding applications.
With intermittent and continuous printing modes, a maximum print speed of up to 750 mm/s, and throughput of up to 250 prints per minute under suitable application conditions, the DataFlex 6330 is designed to support efficient coding on automated packaging lines.
Key Features and Benefits
Two printhead widths: Choose between 32 mm and 53 mm configurations to suit different coding requirements.
High-speed printing: Supports print speeds of up to 750 mm/s, depending on the application and operating conditions.
Intermittent and continuous printing: Suitable for different packaging machine configurations.

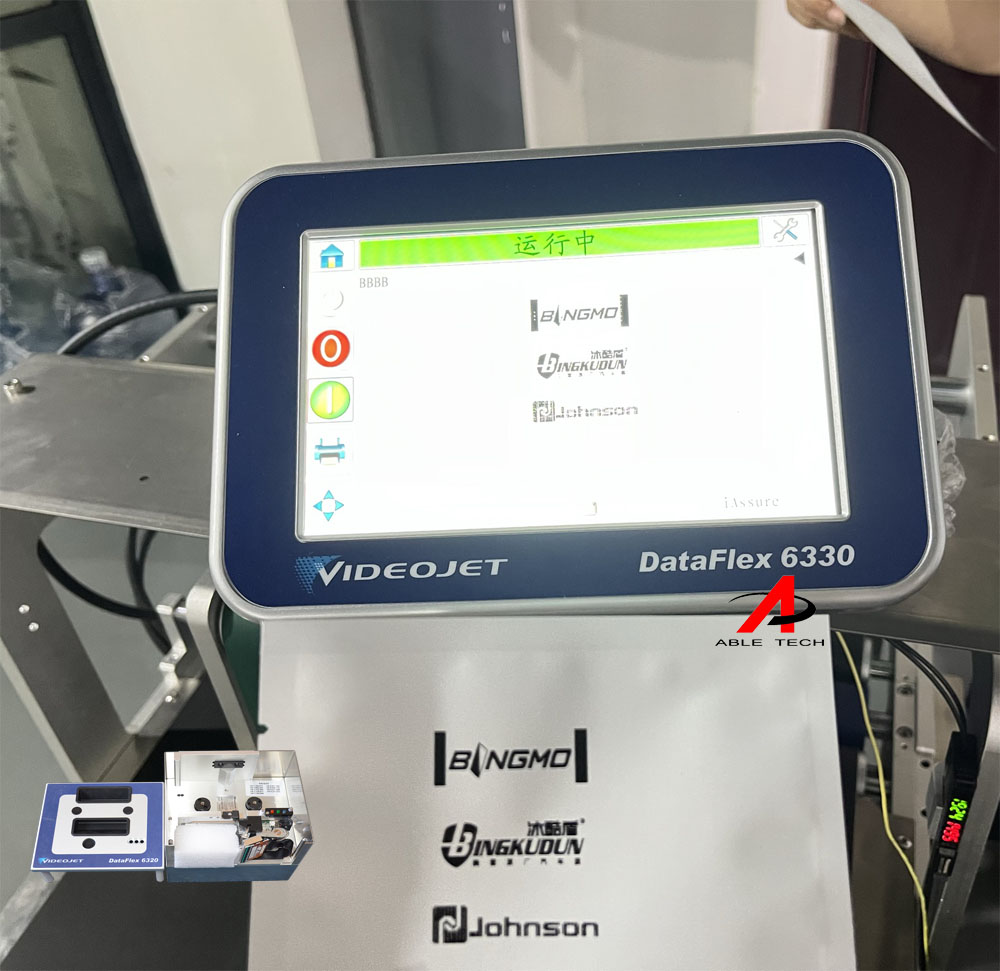

Variable data printing: Print production dates, expiry dates, batch numbers, serial numbers, text, graphics, and supported barcodes.
Ribbon-saving functions: Multiple ribbon-saving modes help optimize ribbon usage for suitable applications.
User-friendly operation: A color touchscreen interface, print preview, and onboard diagnostics support routine operation and troubleshooting.
Packaging line integration: Communication and control options support integration with compatible packaging systems.
Technical Specifications
Parameter | Specification |
|---|---|
Product model | Videojet DataFlex 6330 |
Printing technology | Thermal Transfer Overprinting (TTO) |
Printhead width | 32 mm / 53 mm |
Print resolution | 300 dpi (12 dots/mm) |
Printing modes | Intermittent and continuous |
Maximum print speed | Up to 750 mm/s |
Maximum throughput | Up to 250 prints/min |
32 mm intermittent print area | 32 × 75 mm |
32 mm continuous print area | 32 × 200 mm |
53 mm intermittent print area | 53 × 75 mm |
53 mm continuous print area | 53 × 200 mm |
Ribbon width, 32 mm model | 20–33 mm |
Ribbon width, 53 mm model | 20–55 mm |
Maximum ribbon length | Up to 1,200 m, depending on ribbon |
Printable information | Text, dates, batch codes, graphics, supported barcodes |
Power supply | 100–240 VAC |
Specifications are based on Videojet's published DataFlex 6330 documentation. Maximum speed, throughput, ribbon length, and print performance depend on the configuration and application. Confirm the exact version before ordering.
Frequently Asked Questions
Q1: What is the Videojet DataFlex 6330 used for?
The Videojet DataFlex 6330 is a thermal transfer overprinter designed to print variable information on flexible packaging materials. Common applications include printing production dates, expiry dates, batch numbers, barcodes, product codes, and other product information on packaging films and compatible substrates.
Q2: What is the maximum printing speed of the DataFlex 6330?
The DataFlex 6330 supports a maximum print speed of up to 750 mm/s and throughput of up to 250 prints per minute under suitable conditions. Actual performance depends on the print mode, packaging format, print content, and production line setup.
Q3: What is the difference between the 32 mm and 53 mm DataFlex 6330?
The main difference is the printhead width and the corresponding ribbon-width range. The 32 mm version is suitable for narrower print layouts, while the 53 mm version provides a wider printing area. The right option depends on the size of the information to be printed and the packaging machine's available space.
Q4: Can the DataFlex 6330 print production dates, expiry dates, and barcodes?
Yes. It supports variable text, date and time formats, batch information, counters, graphics, and a range of barcode formats. The available print content depends on the system configuration and application requirements.
Q5: What packaging materials can the DataFlex 6330 print on?
It is designed for compatible flexible packaging materials, including films and foils. The correct ribbon must be selected for the substrate and required print durability. We recommend testing the actual packaging material to confirm adhesion, contrast, and print quality.
Q6: Which thermal transfer ribbon is suitable for the Videojet DataFlex 6330?
Ribbon selection depends on the printhead width, ribbon dimensions, substrate, printing speed, and durability requirements. The published specifications list ribbon widths of 20–33 mm for the 32 mm model and 20–55 mm for the 53 mm model.
Please provide your printer model, current ribbon size, and packaging material so we can help identify a suitable ribbon.
