Inclined Cleated Conveyor for Packaging Line

Automatic Inclined Conveyor for Product Transfer

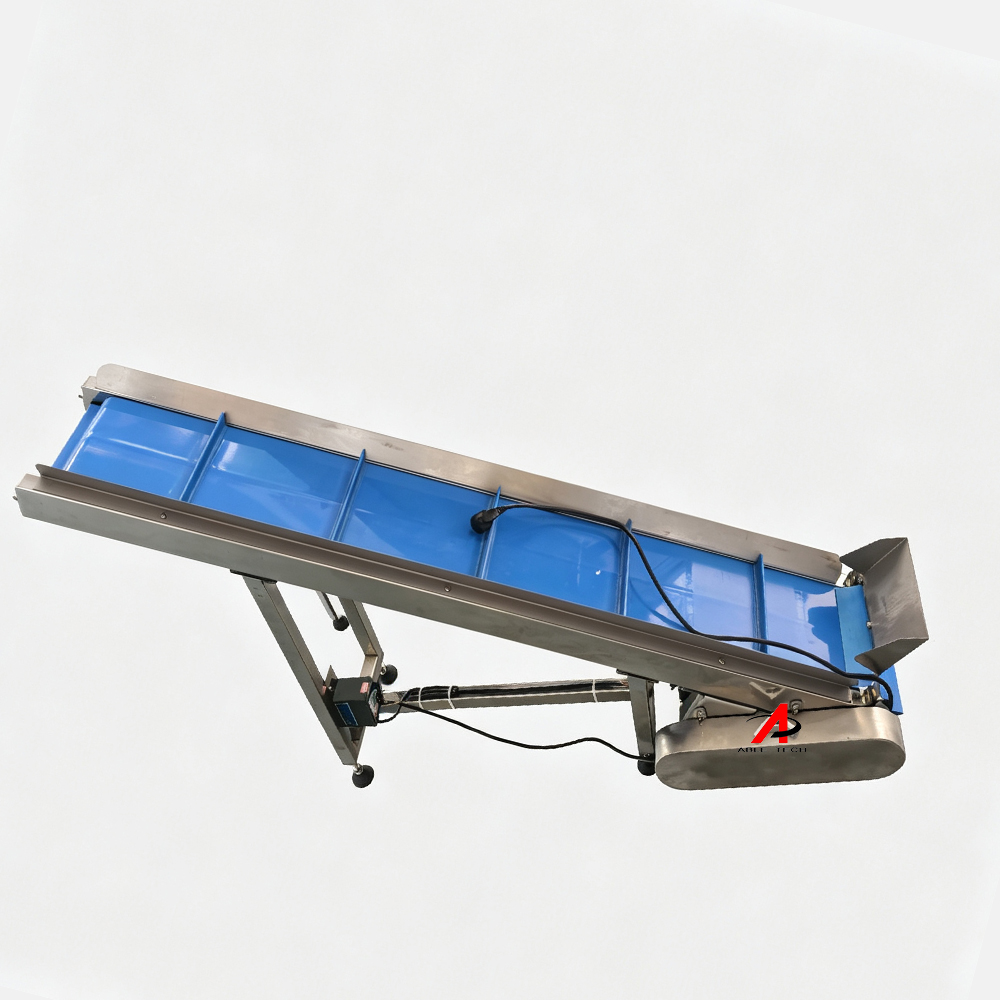

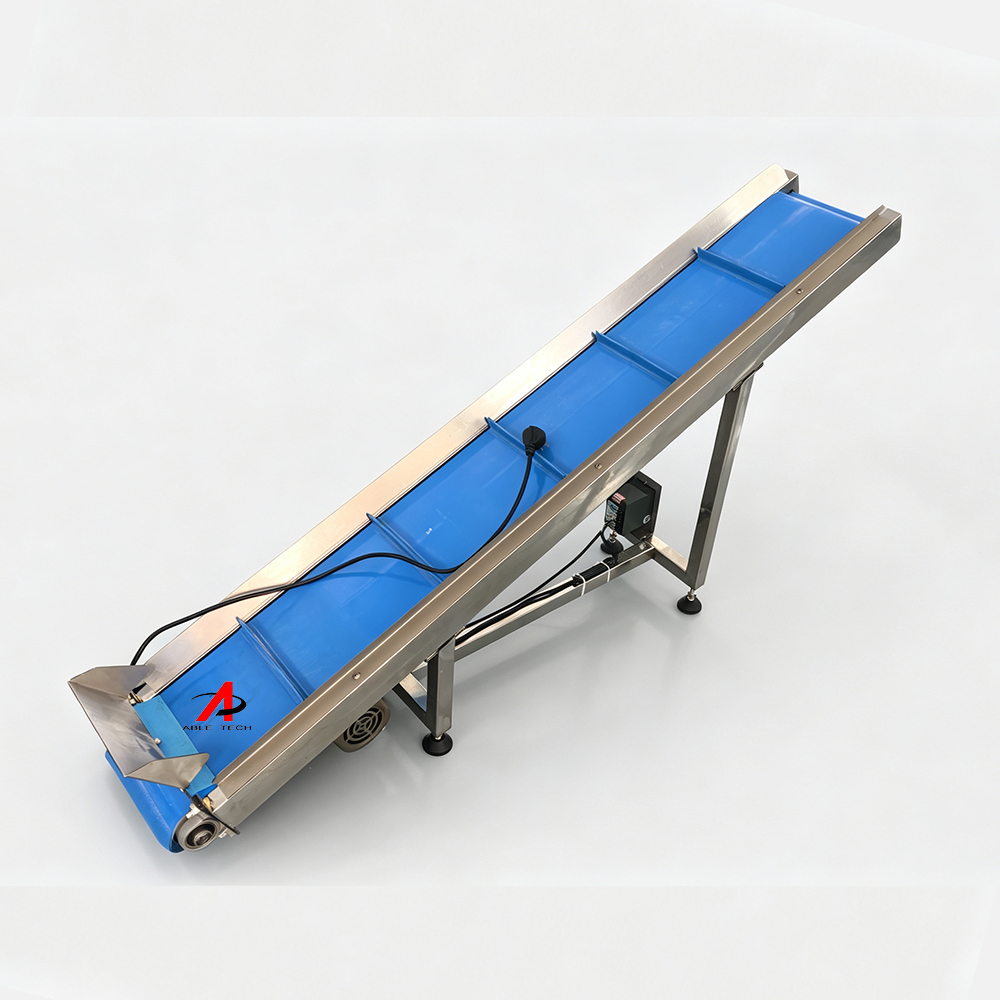

The Inclined Cleated Conveyor for Packaging Line is designed to transfer products from a lower-level packaging machine to an elevated processing or packaging line. With a continuous belt and evenly spaced horizontal cleats, the conveyor securely carries products upward while helping prevent them from sliding backward during inclined conveying.

It is an ideal solution for connecting different stages of an automatic packaging line, especially when the discharge height of the previous machine does not match the feeding height of the next machine.

The conveyor can be customized according to the required conveying height, belt width, conveying speed, and production line layout.

Key Features

Inclined Product Conveying

The conveyor transports products upward from a lower position to a higher packaging or processing station, making efficient use of vertical space in the production line.

Cleated Belt Design

Evenly spaced cleats divide the conveying surface into sections. They help hold products in position and reduce backward movement when the conveyor operates at an incline.

Smooth Product Transfer

Products discharged from the previous packaging machine can enter the conveyor directly and be continuously transferred to the next production stage.

Adjustable Conveying Speed

The conveyor speed can be adjusted according to the working speed of the connected packaging machines, helping maintain a stable production flow.

Flexible Height and Angle

The conveying height and inclination angle can be customized according to the layout and requirements of different packaging lines.

Easy Line Integration

The compact structure allows the conveyor to be integrated with automatic packaging machines, weighing machines, counting machines, inspection equipment, and other production equipment.

How Does the Inclined Cleated Conveyor Work?

The conveyor provides a simple solution for transferring products between machines at different heights.

Step 1 — Product Discharge
Products are discharged from the previous packaging or processing machine onto the lower section of the conveyor.

Step 2 — Product Separation
The horizontal cleats help keep products within individual conveying sections as the belt moves upward.

Step 3 — Inclined Conveying
The belt continuously transports the products upward to the required height.

Step 4 — Product Transfer
At the upper end, products are discharged into the next packaging machine, conveyor, or processing system.

This continuous transfer process helps connect multiple machines into an efficient automatic packaging line.

Applications

The inclined cleated conveyor can be used for conveying a wide variety of packaged or processed products, depending on the belt configuration.

Typical applications include:

• Packaged food

• Pouches and sachets

• Bags

• Boxes and cartons

• Bottles and containers

• Hardware products

• Daily chemical products

• Pharmaceutical products

• Other lightweight packaged products

It is particularly suitable for automatic packaging lines where products need to be transferred from one machine to another at different heights.

Name1

Name2

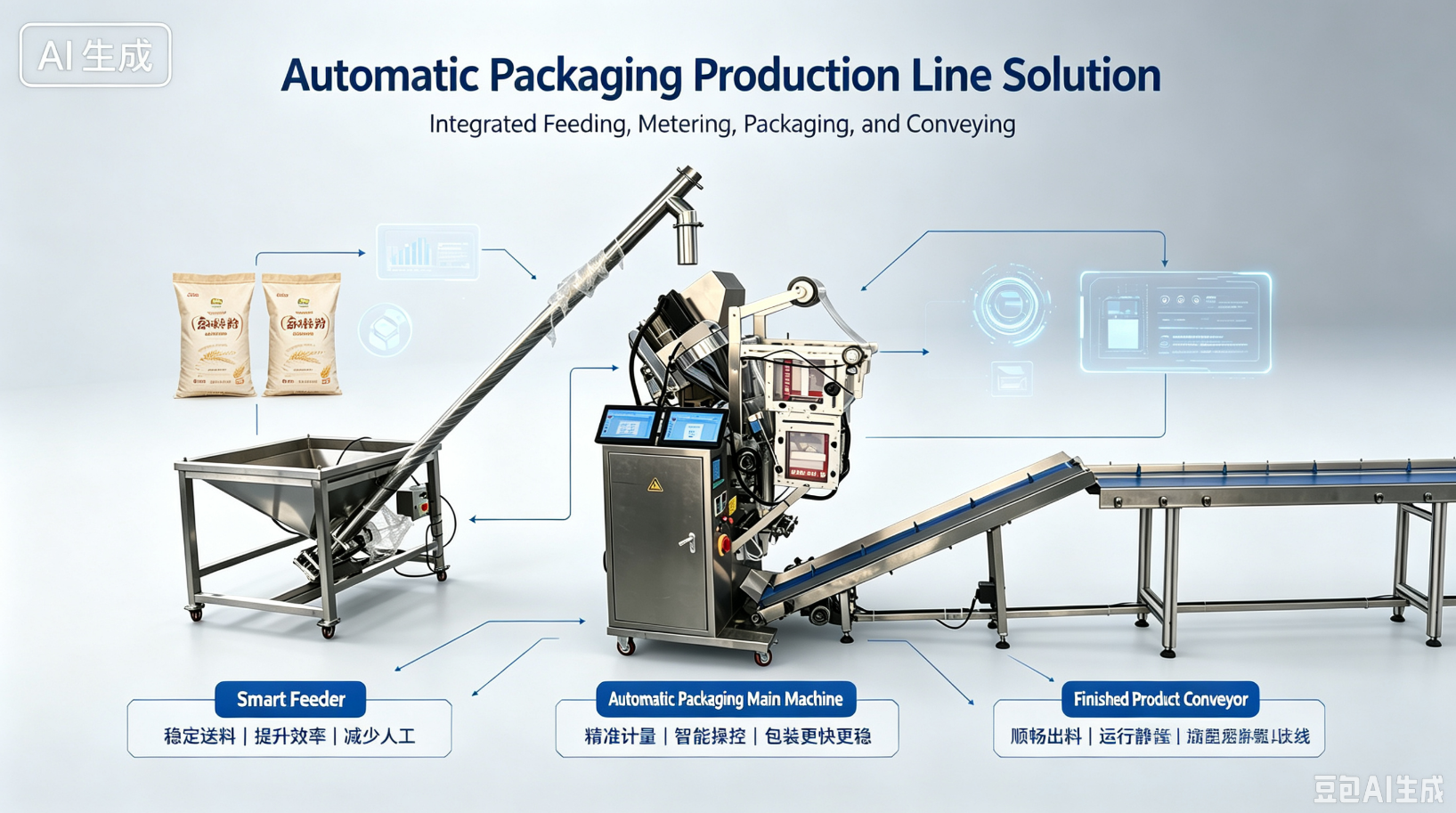

Packaging Line Integration

The inclined conveyor can be installed between different machines to create a continuous product transfer system.

Typical configuration:

Previous Packaging Machine → Inclined Cleated Conveyor → Next Packaging Machine

It can also be combined with:

• Automatic packaging machines

• Weighing machines

• Counting machines

• Checkweighers

• Metal detectors

• Labeling machines

• Inspection systems

• Horizontal conveyors

The conveyor height and configuration can be designed according to the customer's complete production line.

Benefits of an Inclined Cleated Conveyor

Using an inclined conveyor between packaging machines can help:

• Reduce manual product handling

• Connect machines at different working heights

• Improve product transfer efficiency

• Prevent products from sliding backward

• Save production floor space

• Maintain a continuous material flow

• Improve overall packaging line automation
