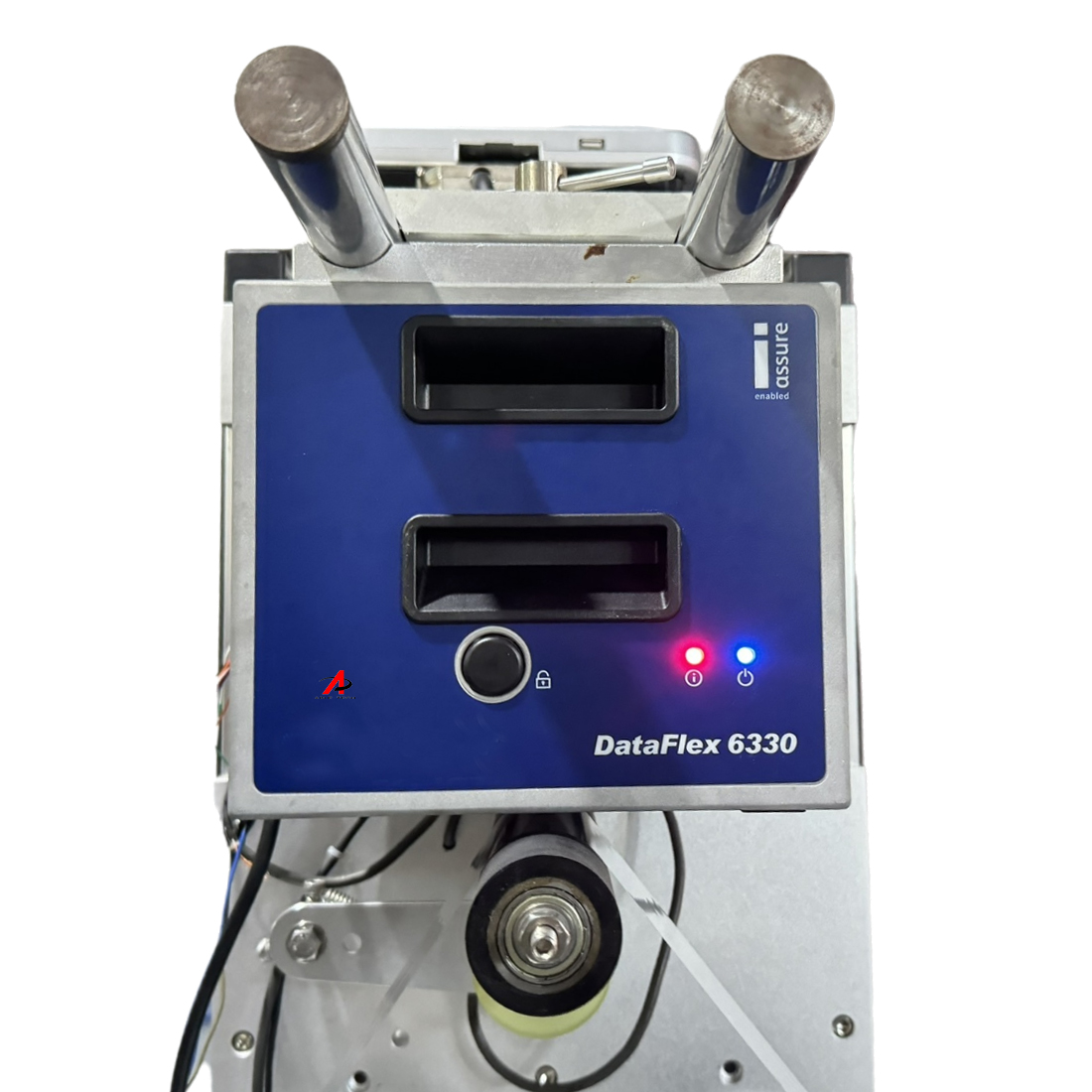

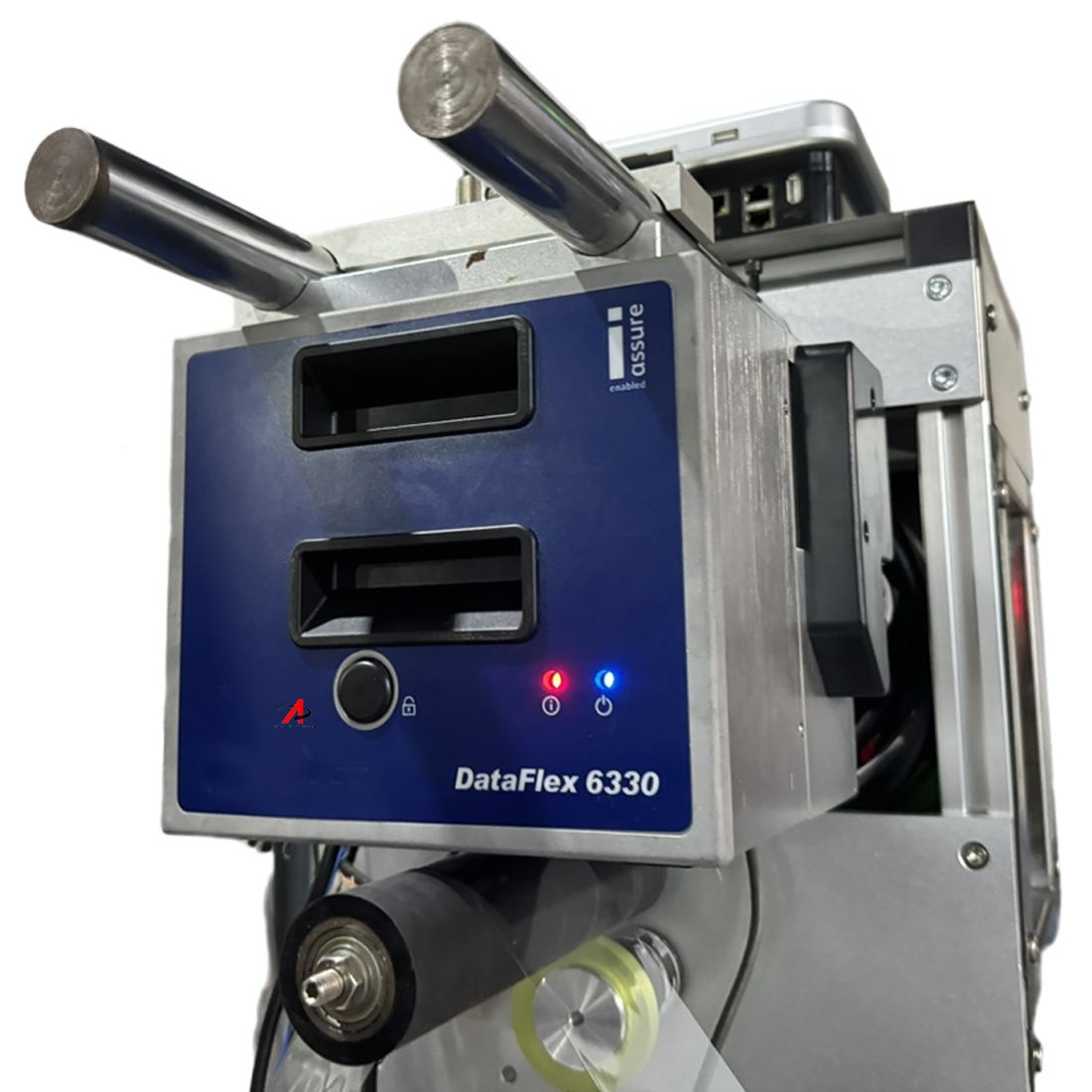

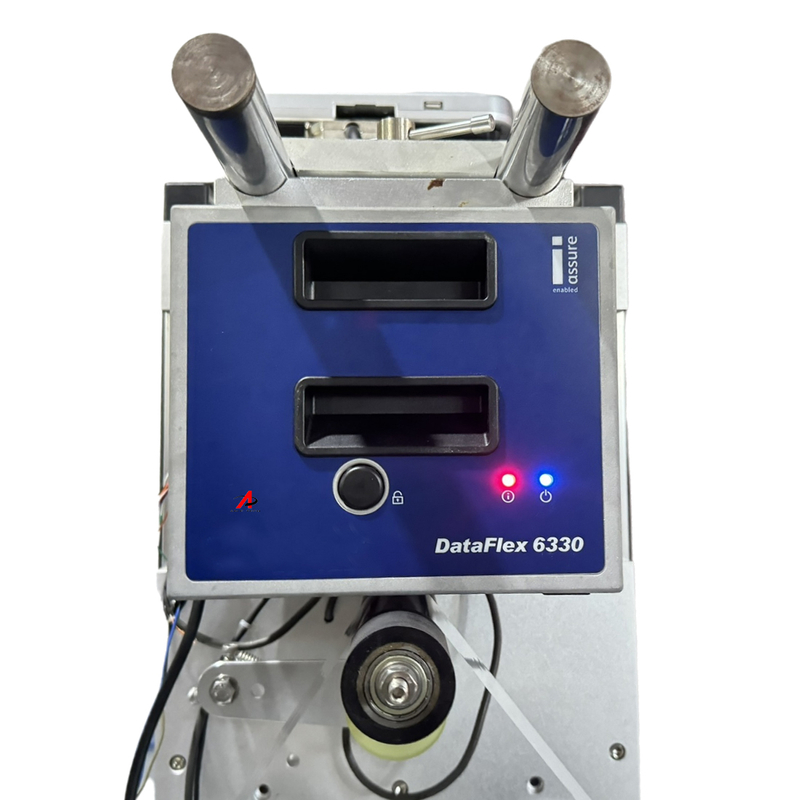

VFFS TTO printer VJ 6330 6530 Dataflex Automatic Thermal Transfer Overprint Coder
Specification | 6530 | 6330 |
Printer Mode | Intermittent and Continuous Motion | Intermittent and Continuous Motion |
Print Gap | Consistent 0.020″ (0.5mm) | Consistent 0.020″ (0.5mm) |
Ribbon Widths | 6530 (53mm): 0.8” (20mm), | 6330 (32mm): 0.8” (20mm), |
2.2” (55mm) max | 1.3” (33mm) max | |
6530 (107mm): 2.2” (55mm), | 6330 (53mm): 0.8” (20mm), | |
4.33” (110mm) max | 2.2” (55mm) max | |
Bar Code Printing | EAN 8, EAN 13, UPC-A, UPC-E, Code 39, EAN 128, Code 128, ITF, RSS (including 2D composite codes); others may be available upon request | EAN 8, EAN 13, UPC-A, UPC-E, Code 39, EAN 128, Code 128, ITF, RSS (including 2D composite codes); others may be available upon request |
Operator Interface | TFT SVGA 800×480 full-color LCD and touch screen, WYSIWYG print preview, full on-board diagnostics, 3 levels of password protection, extensive language support | TFT SVGA 800×480 full-color LCD and touch screen, WYSIWYG print preview, full on-board diagnostics, 3 levels of password protection, extensive language support |
Standard Communication | RS232, dual Ethernet, USB memory stick and scanner support, Binary and ASCII comms protocols, Windows™ drivers ZPL and SATO emulations | RS232, dual Ethernet, USB memory stick and scanner support, Binary and ASCII comms protocols, Windows drivers ZPL and SATO emulations |
Maximum Print Area | 6530(53mm): 2.1” (53mm) wide x 11.8” (300mm) long | 6330 (32mm): 1.3” (32mm) wide x 7.9” (200mm) long |
(Width x Length) | 6530 (107mm): 4.3” (107mm) wide x 11.8” (300mm) long | 6330 (53mm): 2.1” (53mm) wide x 7.9” (200mm) long |
Maximum Print Speed | 39.4 in./sec (1,000mm/sec) | 29.5 in./sec (750mm/sec) |
Minimum Print Speed | 0.04 in./sec (1mm/sec) | 0.04 in./sec (1mm/sec) |
Estimated Maximum Throughput (Single Line Code) | 6530 (53mm): Up to 700 prints per minute | 6330 (32mm): Up to 250 prints per minute |
6530 (107mm): Up to 450 prints per minute | 6330 (53mm): Up to 250 prints per minute | |
Maximum Print Area | 6530 (53mm): 2.1” (53mm) wide x 2.95” (75mm) long | 6330 (32mm): 1.3” (32mm) wide x 2.95” (75mm) long |
(Width x Length) | 6530 (107mm): 4.3” (107mm) wide x 2.95” (75mm) long | 6330 (53mm): 2.1” (53mm) wide x 2.95” (75mm) long |
Maximum Print Speed | 6530 (53mm): 31.5 in./sec (800mm/sec) | 6330 (32mm): 29.5 in./sec (750mm/sec) |
6530 (107mm): 23.6in./sec (600mm/sec) | 6330 (53mm): 29.5 in./sec (750mm/sec) |
