Thermal Transfer Ribbon 50 70 110mm
TTR (Thermal Transfer Ribbon) barcode ribbon. There are three grade types of thermal transfer ribbon: WAX type ribbon ,WAX/RESIN type ribbon and RESIN type ribbon.
The perfect high quality resolution images on a wide variety of label stocks and has good resistance to smudging and scratching. The ultra smooth back-coating provides unparalleled print-head protection while the superior ink coating delivers the darkest most durable images.
Features：
1. Lower printing energy.
2. Better sharpness.
3. Good definition.
4. Higher abrasion resistance.
Type & Model | AT121-Wax AT211-Wax/Resin AT311-Resin Ink Inside/Ink Outside |

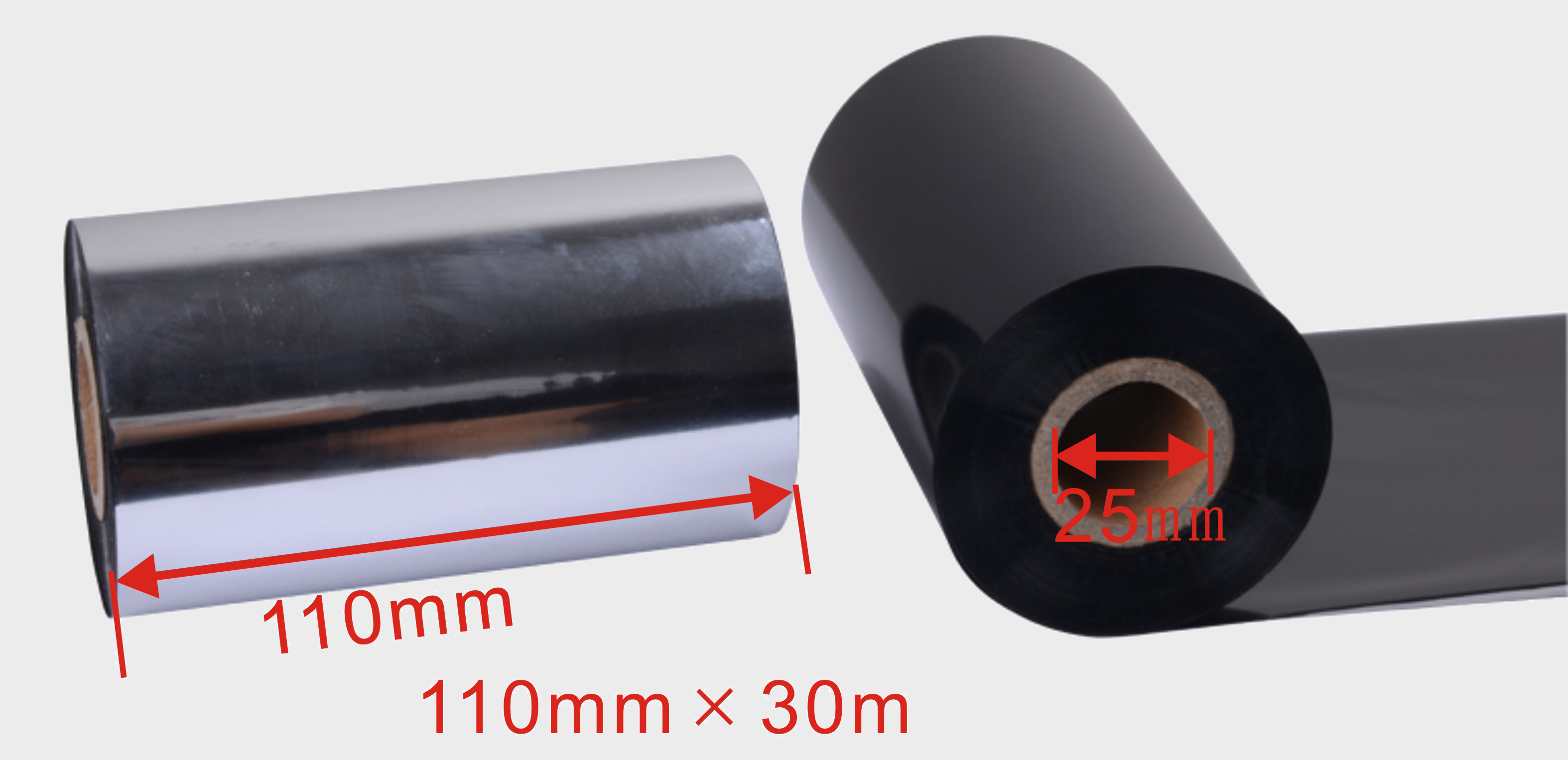

Size | 85mm*300m 90mm*300m ..... 110mm*300m 85mm*450m 90mm*450m ..... 110mm*450m |
Jumbo roll size | 680mm/910mm/1010mm*15000m |
Thickness | 7.5 um+-0.1 um |
Print Speed | Max. 8 inch/Sec |
Print Energy | At least 12mj/sq.m |
print Density | At least 1.9 macbeth densitometer |
Grade | Ansi above 3.5/A |
Recommended Substrates | Coated paper, Vallem paper, Tag stock, Synthetic paper |
Scratch Resistance | Image density above 80%(coated paper) |
Light Resistance | Image density above 70%( coated paper) |
Using Environment | 5-35/20-80%RH |
Storage Environment | 0-40/20-80%RH |
