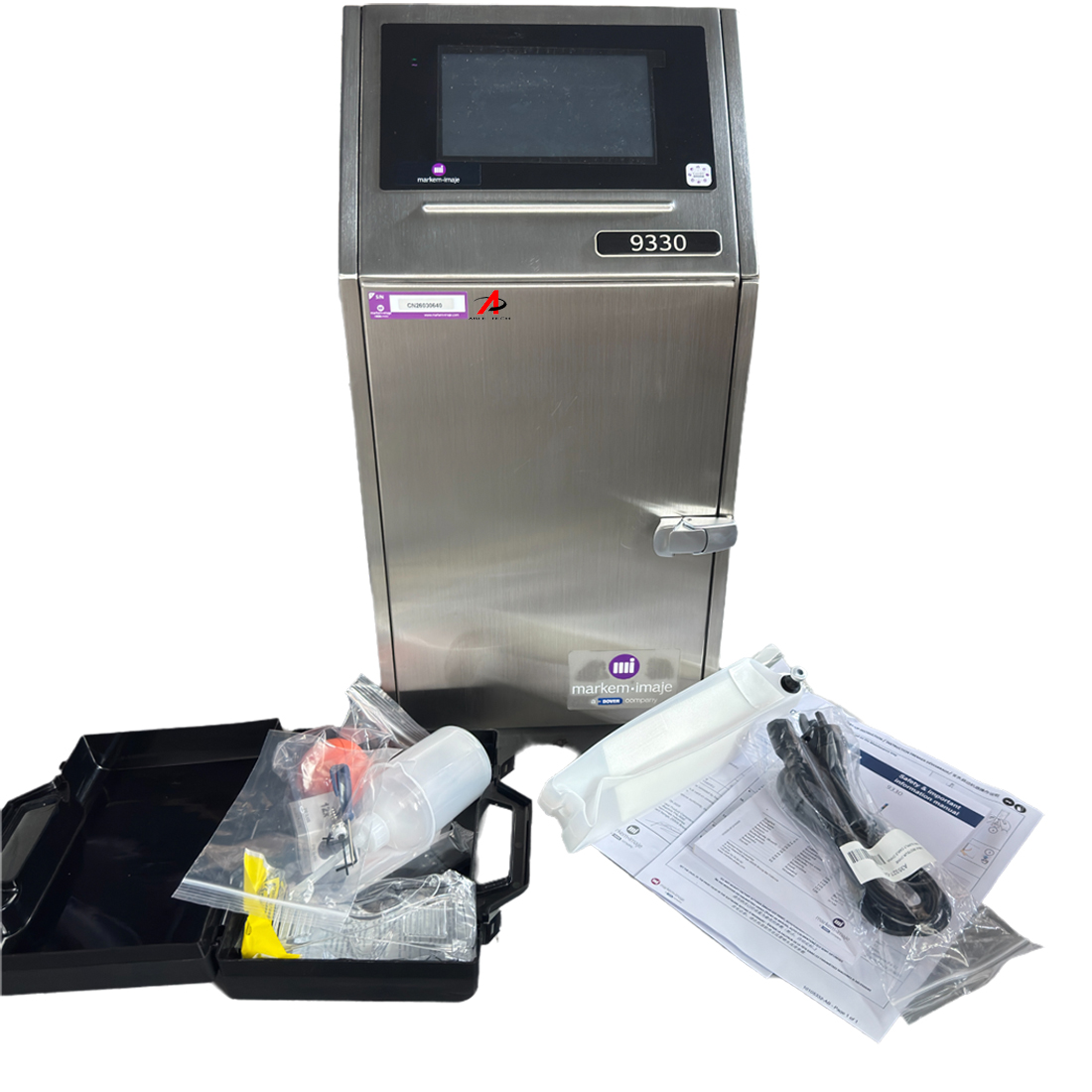

Cable printing machine Markem Imaje 9330 5 lines

• Easy to install Put it anywhere you need, thanks to its robust IP55 fully stainless steel design. • Easy to start up Automatic printhead cleaning system makes start-ups simple and quick. Just plug it in and start printing, even after weeks of storage. • Easy to use Smart consumable system requires no set-up and prevents costly cartridge-related operator mistakes. • Easy to maintain M6’ ink circuit can be changed in less than 6 minutes without spillage or waste.

Print features • Mono-jet printhead • G head (printing resolution: 71 dpi) • Up to 5 lines of print • Print speed: up to 4.4 m/s • Maximum speed (7 dot high characters): - 0.60 m/s (0.36 mm drop pitch for 4 lines) - 1.01 m/s (0.36 mm drop pitch for 3 lines) • Font height from 5 to 24 dots • Character height: from 1.8 to 8.6 mm • Wide choice of characters (Latin, Arabic, Cyrillic, Greek, Japanese, Chinese, Hebrew, Korean…) Other characteristics • Weight: 18.5 kg • 3-meter flexible umbilical cable • Stainless steel cabinet • Dust/humidity protection rating: IP55 • No plant air required • Operating temperature range: 5° to 40° C, depending on ink used • Humidity: 0% to 90% non-condensing • Electrical power supply: 100 - 120 V or 200 - 240 V with automatic switching; frequency 50/60 Hz; power 34 W Operations • Message library (up to 1000 messages) • International operator/machine interface (choice of 31 languages) • Color touch screen • Maximum number of characters per second: 2083 • On-screen output: on/off, consumable level indication, current print counter • On-screen help and maintenance information • Programmable shut down • 2 sealed intelligent cartridges, 0.75 liter each • Quick connect/disconnect of accessories (photocell, encoder, alarm, I/O) • Connectivity: Ethernet / RS-232 Options • Printhead pressurization kit (plant air required) • Autonomous pressurization kit (no plant air required) Accessories • Printer supports: stands (stainless steel or aluminum), table or wall mounting bracket • Photocell • Encoder • Alarm beacon (24 V)
