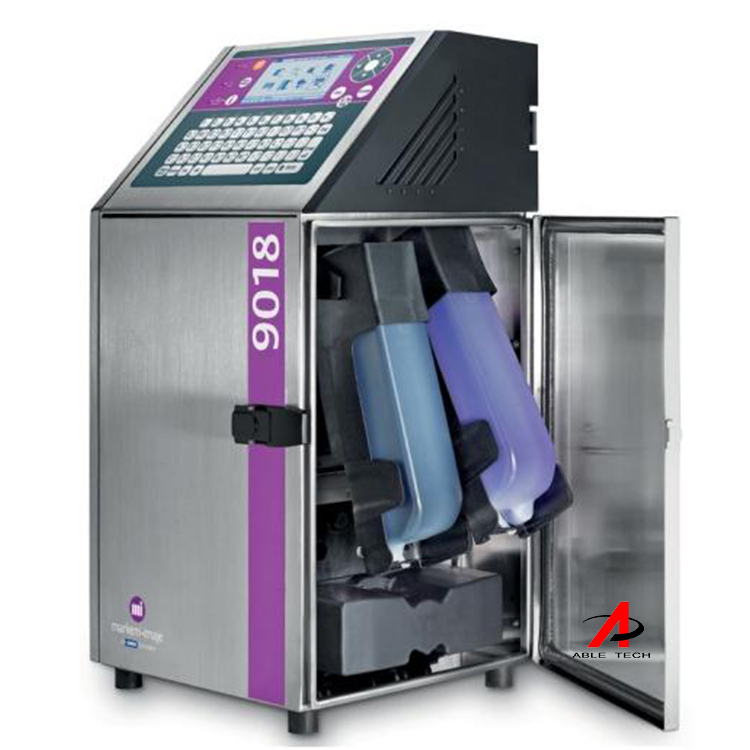

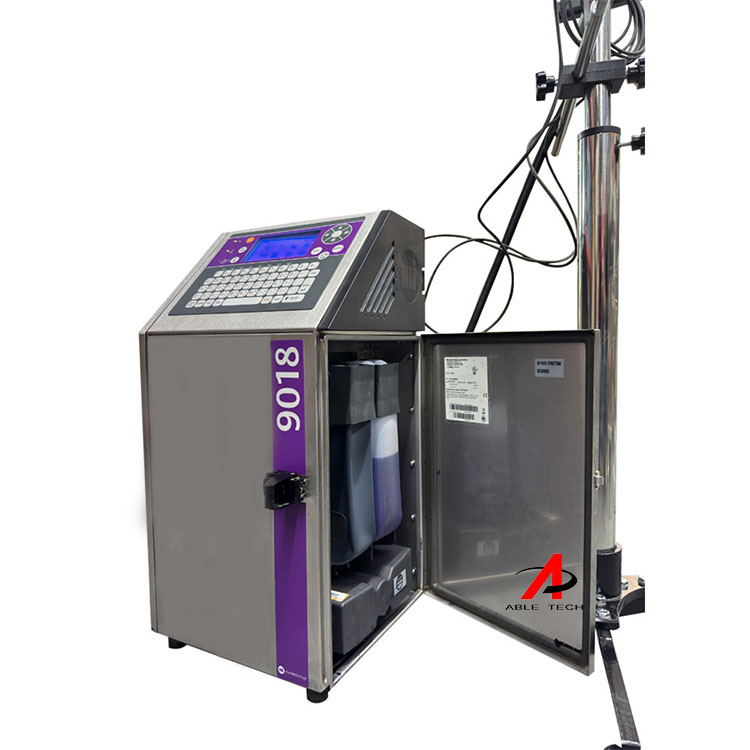

Bottle batch number printing machine markem imaje 9018 for Packaging Conveyor
Printing on glass bottles
Printing on plastic bottles
Print features
Mono-jet printheadG head (printing resolution: 71 dpi)
.Up to 3 lines of printPrint speed: up to 3 m/sFont height from 5 to 24 dotsCharacter height: from 1.8 to 8.7 mmWide choice of characters (Latin, Arabic, Cyrillic, Greek, Japanese,
Chinese, Hebrew, Korean...)
Operations
Message library (up to 100 messages)
International operator/machine interface (choice of 3l languages)Large WYSlWYG backlit blue screen
Integrated help for navigation and diagnostics
Creation of logos directly on the operator/machine interface USB port M6' ink circuit
Jet Speed Control guarantees marking quality
Automatic selection of fonts, depending on print speed and printhead/
obiect distance
Possibility to choose different types of quick-drying black inks.
including MEK-free
2 sealed intelligent cartridges. 0.75 liter each
Quick connect/disconnect of accessories (photocell, encoder. alarm)
Other characteristics
Weight: 18.5 kg.2-meter flexible umbilical cable
Stainless steel cabinet
Dust/humidity protection rating: lP55
No plant air required
Operating temperature range: 0° to 40°C, depending on ink used
Humidity:10% to 90% non-condensingElectrical power supply: 100-120 V or 200 -240 V with automaticswitching; frequency 50/60 Hz; power 34 W
Options
4-line printingRS-232 connectivityPrinthead pressurization kit (plant air required).Encoder and alarm connectivity3-meter umbilical
Accessories
Printer supports: stands (stainless steel or aluminum), table or wallmounting bracketStainless steel printhead cover.
Photocell.Encoder.
.Alarm beacon (24 V)Conveyor stop output
