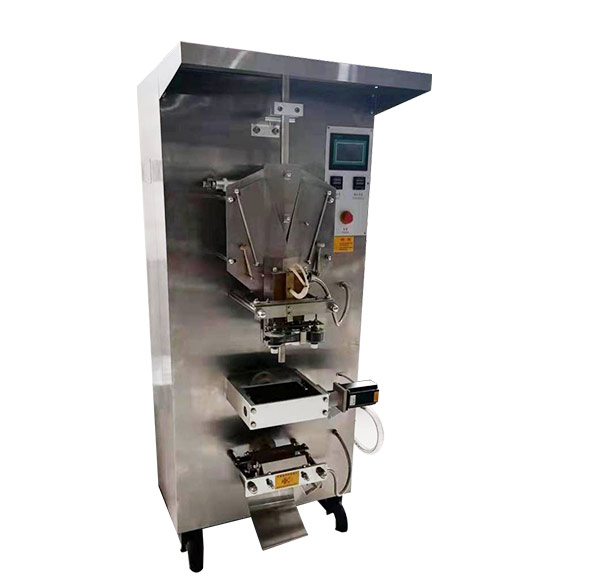

Liquid Packing Machine
AT series intelligent liquid packing machine is mainly used for various gas free liquid flilling and packing in pillow bag. Such as soy sauce, vinegar, fruit juice, beverage, milk, soy milk, mineral water and liquid chemical products etc
Feature:
The whole machine is made up of: plunger pump volume metering device, film feeding device,Film forming device, vertical sealing device, horizontal sealing and cutting apparatus, electric control parts, Frame device and other components. Packaging process Film pulling bag, heat sealing , filling , cutting , packaging products
model | AT1000 | AT2000 | AT4000 |
capacity | 20-25 bag/min | 20-25 bag/min | 15-20 bag/min |
Volume （ML） | 50-500 | 200-1000 | 500-2000 |
power | 2.1KW/220V/50HZ | 2.5KW/220V/50HZ | 2.5KW/220V/50HZ |
Bag size（L） | 50-100mm | 50-250mm | 65-210mm |
Film size（W） | 150-320mm | 150-380mm | 150-450mm |
Dimension（m3） | 0.85×1.05×2.05 | 0.85×1.05×2.05 | 1.1×1.2×2.1 |
Application:
AT series intelligent liquid packing machine is mainly used for various gas free liquid flilling and packing in pillow bag. Such as soy sauce, vinegar, fruit juice, beverage, milk, soy milk, mineral water and liquid chemical products etc
Feature:
The whole machine is made up of: plunger pump volume metering device, film feeding device,Film forming device, vertical sealing device, horizontal sealing and cutting apparatus, electric control parts, Frame device and other components. Packaging process Film pulling bag, heat sealing , filling , cutting , packaging products
model | AT1000 | AT2000 | AT4000 |
capacity | 20-25 bag/min | 20-25 bag/min | 15-20 bag/min |
Volume （ML） | 50-500 | 200-1000 | 500-2000 |
power | 2.1KW/220V/50HZ | 2.5KW/220V/50HZ | 2.5KW/220V/50HZ |
Bag size（L） | 50-100mm | 50-250mm | 65-210mm |
Film size（W） | 150-320mm | 150-380mm | 150-450mm |
Dimension（m3） | 0.85×1.05×2.05 | 0.85×1.05×2.05 | 1.1×1.2×2.1 |
Application:
