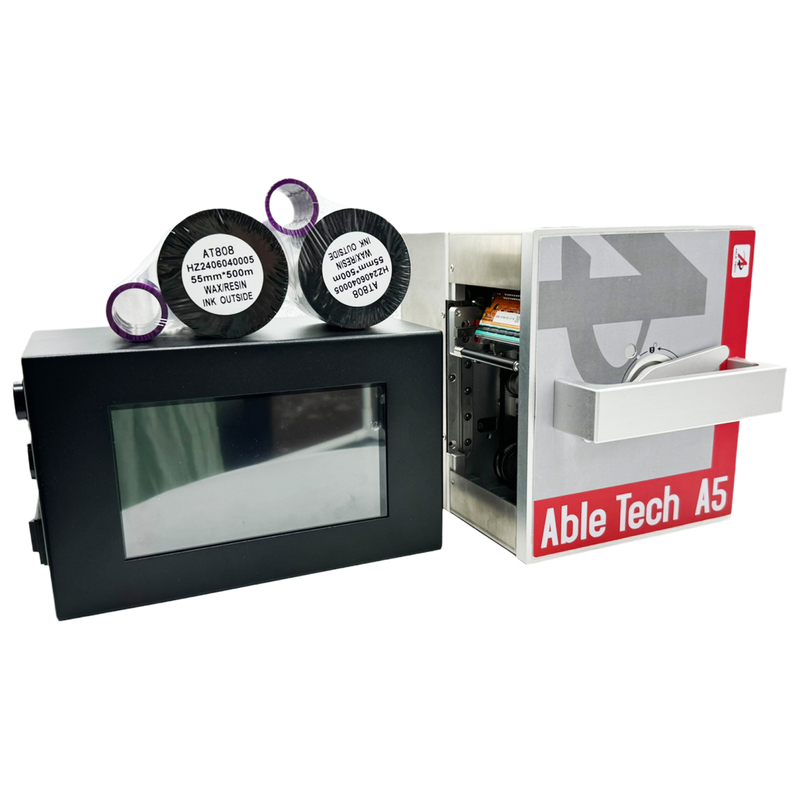

Able A5 53mm TTO Printer | No-Cylinder Thermal Transfer Overprinter for Flexible Packaging
The Able A5 no-cylinder TTO printer is a 53 mm thermal transfer overprinter for flexible packaging. One machine covers the three coding jobs every packaging line needs: date coding (production dates, expiry dates, batch numbers), QR and barcode coding for traceability, and inline coding on labeling and packaging machines.
The A5 prints dry, smudge-resistant codes directly on film and pouches by thermal transfer (TTO) – no ink, no solvents, no drying time. The no-cylinder design drives the printhead electrically, which keeps the printer compact, cuts the moving parts that wear out, and means the line does not need compressed air.
TTO printer

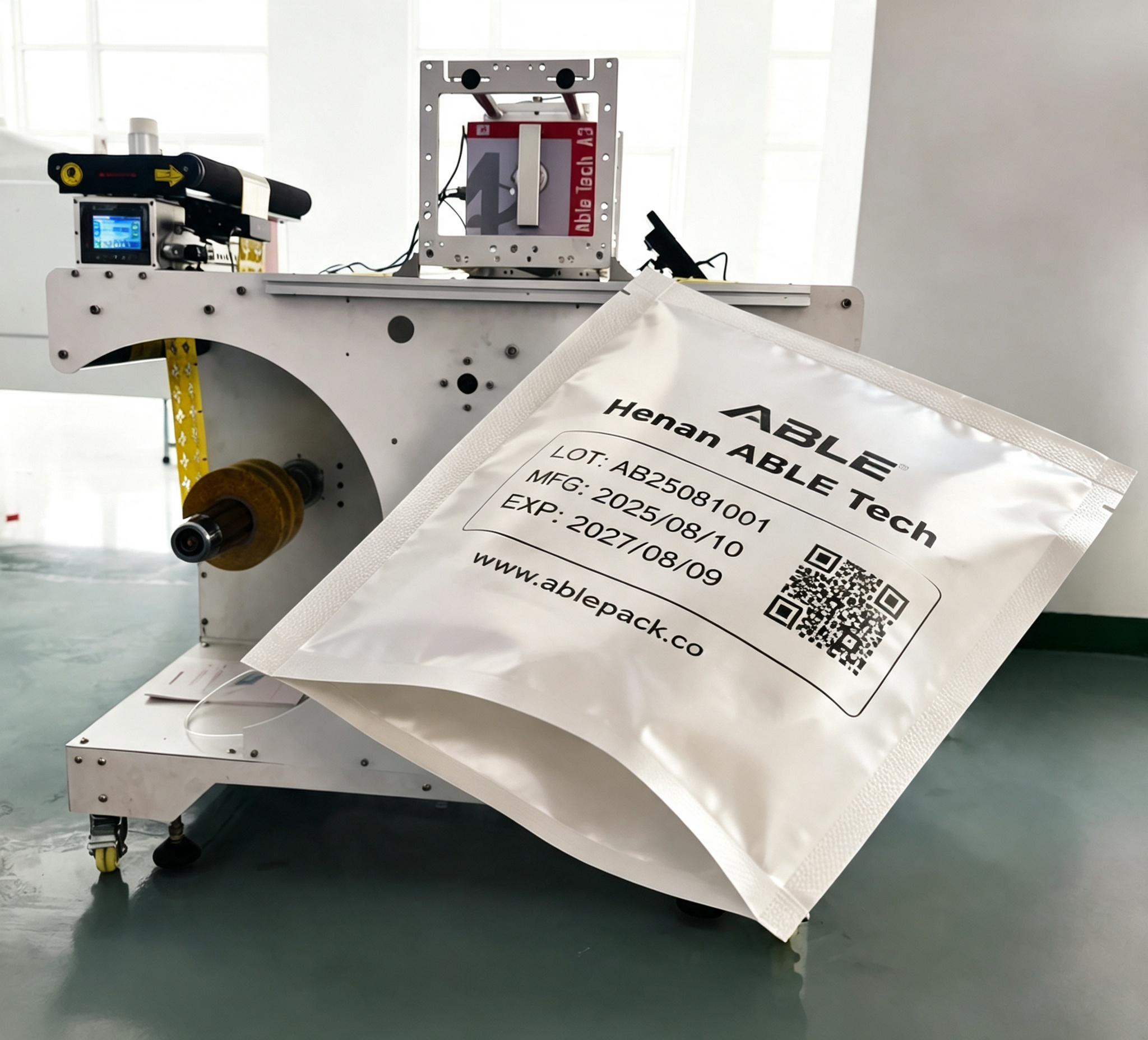

On rewinder
Key Specifications
| Model | Able A5 |
|---|---|
| Print Technology | Thermal transfer overprinting (TTO) |
| Printhead Width | 53 mm |
| Printhead Drive | Intelligent electric (no-cylinder) drive – no compressed air needed; ribbon and printhead auto-detected, no manual adjustment |
| Throughput | Up to 450 packs per minute |
| Print Speed | Intermittent mode: 100–500 mm/s; continuous mode: 50–600 mm/s |
| Max Print Area | Intermittent mode: 53 mm x 75 mm; continuous mode: 53 mm x 300 mm |
| Printable Content | Production date, expiry date, batch / lot number, serial number, barcode, QR code, product logo, variable data, counting, ingredients list, UDI codes |
| Processor & Storage | 1.0 GHz CPU; 512 MB print-data storage; controller with 8 GB storage and built-in editing software |
| Software | Free ICode editing software |
| Multi-Unit Control | One controller can operate several coding machines; each coding machine can be controlled by multiple controllers |
| Interfaces | Print engine: Gigabit Ethernet, Wi-Fi, USB, serial port; controller: Gigabit Ethernet, Wi-Fi, Bluetooth, USB |
| Compatible Materials | Plastic film, laminated film, aluminum foil packaging, vacuum bags, food pouches, pharmaceutical sachets, cosmetic packaging |
| Line Integration | Pillow (flow wrap) machines, vertical form-fill-seal machines (VFFS), labeling machines, bag-making machines, rewinding machines, paging machines, automatic packaging lines |
| Consumable | Thermal transfer ribbon (TTO ribbon), supplied in matching widths and lengths |
| Dimensions (A5) | Per official dimension drawing (approx. 220 x 231 x 181 mm; reserve 60 mm for cable lead-out; 100 mm clearance for ribbon cassette loading) |
| Resolution | 300DPI |
One Printer, Three Coding Jobs
Date coding machine for flexible packaging
Print production dates, expiry dates, best-before dates, batch and lot numbers directly on film and pouches. The A5 replaces hot stamp coders and ink rollers with clear, consistent thermal transfer codes that stand out on flexible film.
QR code coder for traceability
Print QR codes, barcodes, product logos and variable data for traceability programs, anti-counterfeiting and retail compliance. High-resolution thermal transfer keeps small codes scannable from the first pack to the last.
Labeling machine & line integration
TTO coders like the A5 are commonly mounted on labeling machines, flow wrappers, VFFS machines and complete packaging lines to code film, pouches and labels inline. Compact size and simple ribbon path make it easy to fit into existing equipment.
Designed for Flexible Packaging
The A5 is developed for packaging materials that need a clean, dry coding method:
Plastic film & laminated film
Aluminum foil packaging
Vacuum bags & food pouches
Pharmaceutical sachets
Cosmetic packaging
Frequently Asked Questions
Can the A5 TTO printer print production dates and expiry dates?
Yes. The A5 prints production dates, expiry dates, best-before dates, batch and lot numbers and serial numbers directly on flexible film packaging, with the date and time set on the printer.
Can it print QR codes and barcodes?
Yes. The A5 supports barcode and QR code printing along with text, product logos and variable data, which makes it suitable for traceability programs on food and pharmaceutical packaging.
Can the A5 be used with a labeling machine?
TTO coders like the A5 are commonly integrated with labeling machines and packaging lines to code film, pouches and labels inline. Tell us your machine model and line speed when asking for a quotation so we can confirm the mounting kit.
What is a no-cylinder TTO printer?
A no-cylinder (electric-drive) TTO printer moves the printhead with an electric motor instead of a pneumatic cylinder. This removes the need for compressed air on the line, simplifies installation and reduces the moving parts that wear out.
What consumables does the A5 use?
The A5 uses thermal transfer ribbon (TTO ribbon). We supply matching TTO ribbons in the required widths and lengths for continuous supply.
